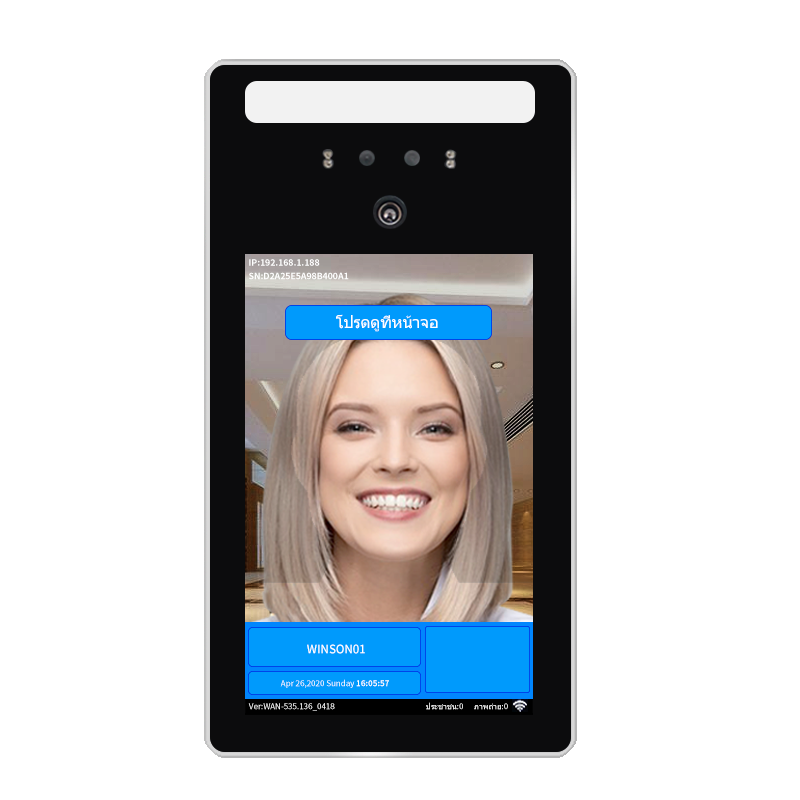

| Model |
Winson 8S |
| Hardware |
| CPU |
Quad-core Cortex processor 1.8GHz |
| RAM |
RAM 2GB |
| Memory |
ROM 8GB(16GB) |
| Operating system |
Android 7.1 |
| Display |
8-inch LCD display,Resolution:800*1280@60HZ |
| Appearance material |
Aluminum alloy shell, tempered glass panel |
| Performance |
| Recognize height |
1.2-2.2 m |
| Recognition distance |
0.3-0.5 m |
| Face angle |
About 30⁰, up and down 30⁰ |
| Identification technology |
Near infrared living detection,embedded visible light face recognition,adapt to most indoor and outdoor environments,can be quickly identified on the move |
| Recognition speed |
Face detection and tracking 20ms，face detection passed 300-500ms Body temperature detection 2s-3s/person |
| Status Display |
Name broadcast display,custom information broadcast display |
| Face Library |
30000（Scalable） |

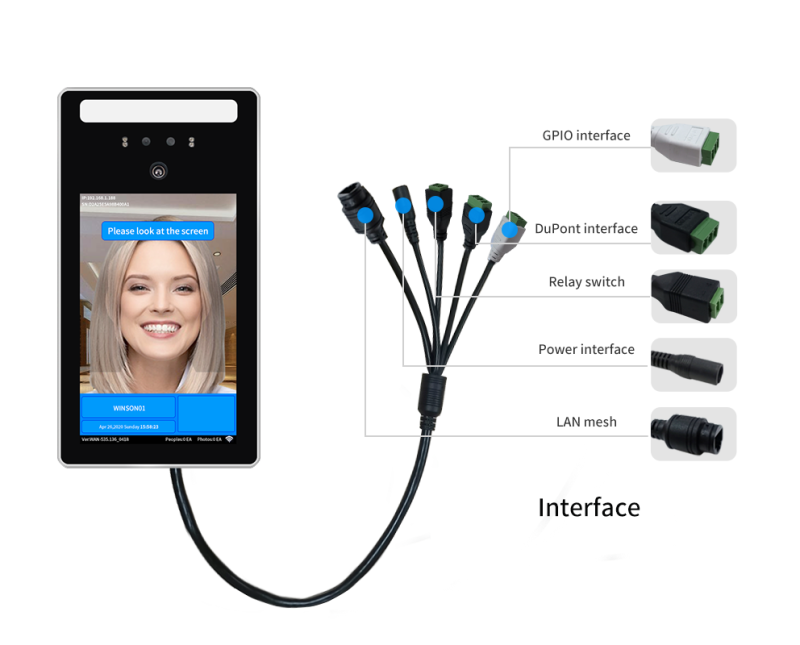

| Main control board interface |
| Power interface |
1,external socket and a built-in 6P socket (with STB function) DC 12V input |
| Network Interface |
1 RJ45 10M / 100M adaptive Ethernet port |
| Extension port |
TTL 1 way, RS485 1 way, Wiegand 2 way, RS232 1 way |
| Headphone/MIC interface |
1, external headphone audio output socket (GB: GND, MIC, R, L) |
| WIFI |
1 WIFI signal, support 2.4G / 5G WiFi, support Wi-Fi 802.11b / g / n protocol (non-standard configuration) |
| 3G/4G(select accessories) |
Scalable 1 way 3G(WCDMA、 EVDO、 CDMA、 GSM)/4G(LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM)signal |
| SD card interface |
Max expansion to 64GB TF card |
| Open the output |
1 channel open output (normally open, normally closed) |
| Fill light signal (reserved) |
Fill light signal (reserved) |
| Binocular camera parameters |
| Camera |
Binocular B/W, HDR 2.0 MP,automatic exposure,automatic white balance,automatic backlight optimization |
| Sensor |
1 / 2.7 "industrial-grade binocular high-definition wide dynamic image sensor |
| Frame rate |
Black and white color up to 30 frames, no smear |
| Infrared lamp spectrum |
850nm |
| Camera |
Binocular B/W, HDR 2.0 MP,automatic exposure,automatic white balance,automatic backlight optimization |
| Effective Pixels |
1920*1080/1920*1080 |
| Camera lens |
M12(f=3.6MM)/ M12(f=3.6MM) |
| Pixel size |
3.0um X3.0um/3.0um X3.0um |
| Min illumination |
≥0.01LUX at F1.2/≥0.1LUX at F1.2 |
| SNR |
≥41dB |
| Wide dynamic range |
≥96dB/≥105dB |
| Interface Type |
USB2.0 |
| Video coding |
H.265 Main Profile coding/H.264 BP/MP/HP coding/MJPEG coding |
| Image Resolution |
Main code stream |
640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@ 30fps/1920X1080@ 30fps |
| Secondarycode stream |
640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@ 5fps/1920X1080@5fps |
| Read card parameters（select accessories） |
| Identification card type |
Read M1IC card serial number and ID card serial number |
| RF operating frequency |
13.56MHZ |
| Operating effective distance |
<3cm |
| Reading rate |
15 times/s |
| General parameters |
| Working temperature |
-10℃ - +55℃ |
| Working humidity |
0 ～ 90% relative humidity, no condensation |
| powered by |
DC12V/2A |
| Device power consumption |
≦16W |
| Device size |
253*139*26.5 m |
| Device weight |
0.9kg（Varies according to configuration） |
| Certificates |
| CE，FCC，ROHS certification |
