Specifications
Specifications
PHYSICAL CHARACTERISTICS
Dimensions
100mm*82mm*34mm(L*W*H)
Weight
128g
Configurations
Decode
ENVIRONMENTAL
Ambient Light
Fluorescent light 1600 Lux max, direct sun light 80,000 lx max
Operating Temperature
0° to 50°C
Storage Temperature
-5°C to 55°C
Humidity
5 - 95% (operation) 5 - 95% (storage)
Field of View
36°(H) x 23°(V)
Shock drop test
1.5m drop onto concrete surface
ELECTRICAL

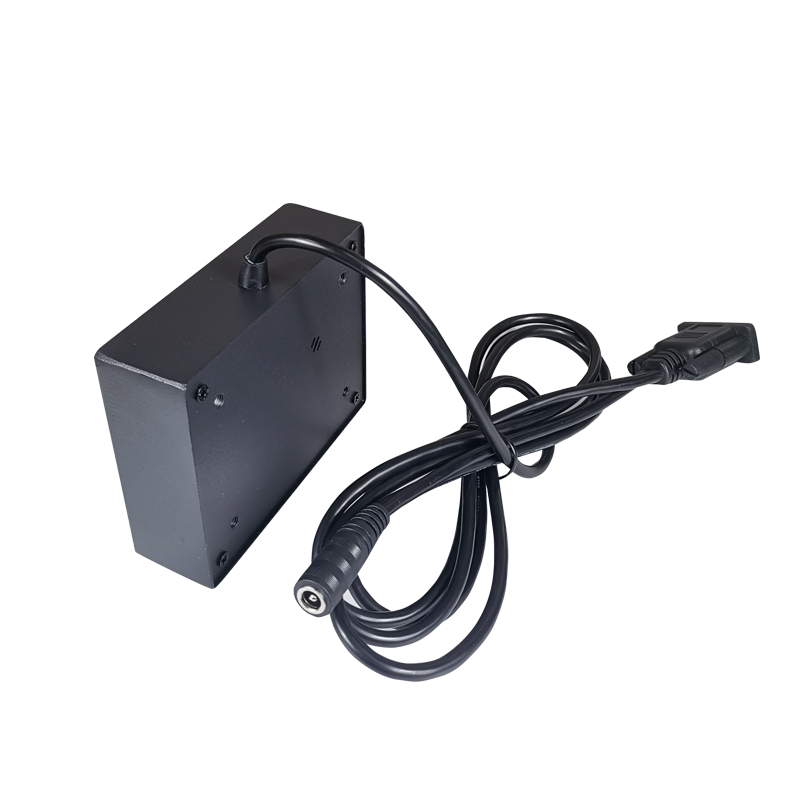

Interface
USB/RS-232
Interface connector
0.5-12P FPC
Voltage requirement
DC 5V±5%
Current consumption
Max:224mA
OPTICAL CHARACTERISTICS
Photo sensor
CMOS array sensor
Sensor Resolution
1280X800 pixels
Aim light source
Red Bar LED
SUPPORTED BARCODE SYMBOLOGIES
1D: Code 128, Code 93, Code 39, ITF-6, ITF-14, Interleaved of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5, GS1 Databar, EAN-13, Code 11, MSI-PLESSEY,Code 11,PLESSEY,EAN-8,UPC-E,ISBN,CODEBAR
2D：QR，PDF417，Data Matrix
