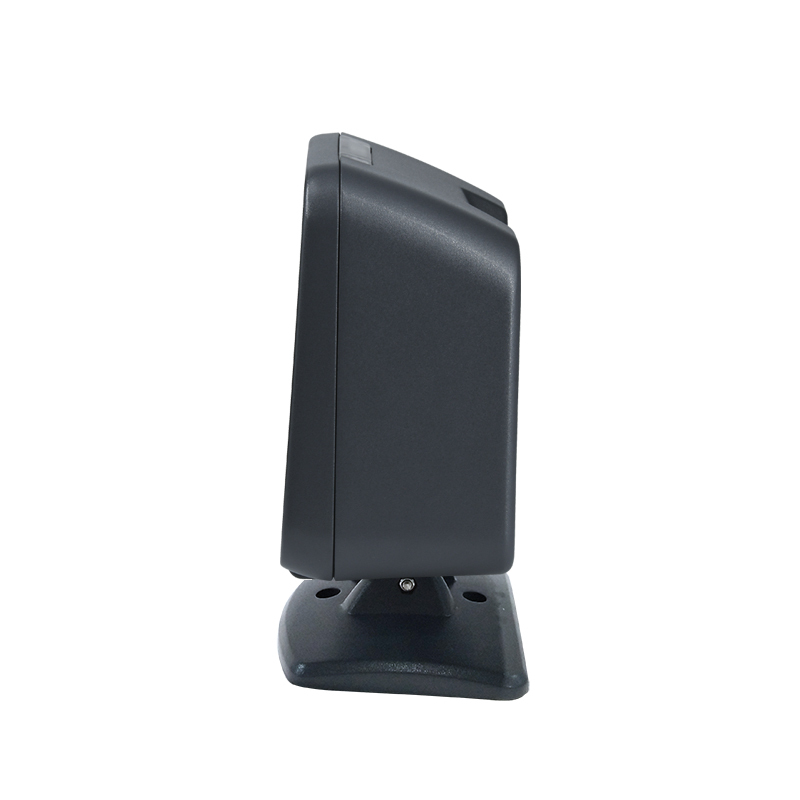

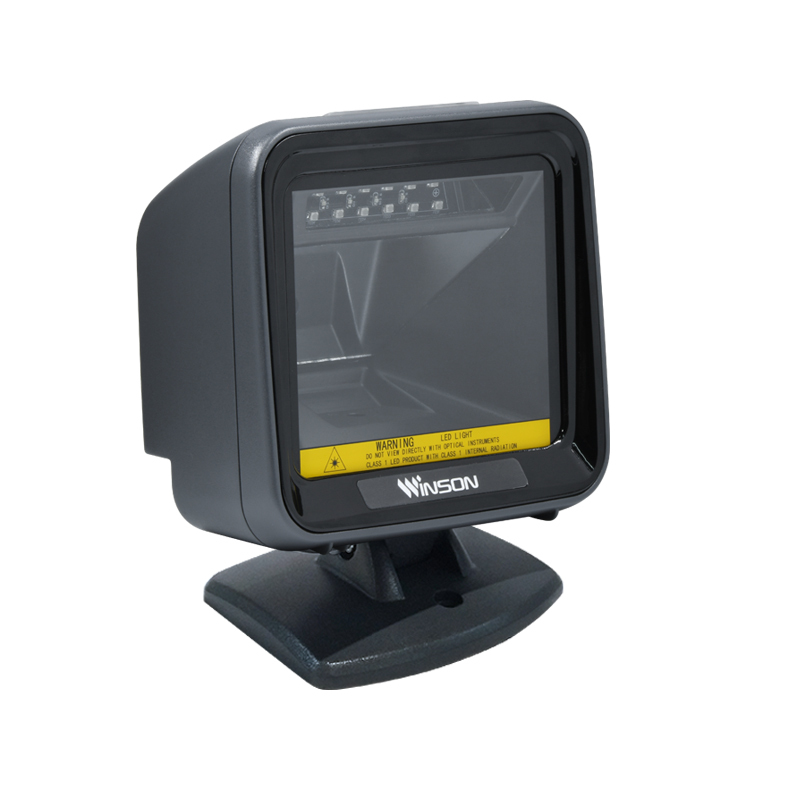

WAI-7000-Z 1D&2D Omnidirectional Hand Free Barcode Scanner

Description Technical parameter Review

Description

The WAI-7000-Z is the most popular area-imaging scanner engineered to decode all standard 1D, PDF and 2D barcodes. The scanner’s sleek and elegant design also blends seamlessly in retail environments, providing superior-performance scanning of all printed barcodes, and digital barcodes on any smart device.

Highlights

♦ Laser-free Aiming
Laser-free aiming provides an accurate scan indication, creating a customer-friendly operating environment while removing the risk of eye injury.
♦ Interface Flexibility
Choose USB HID KEYBOARD, USB VCP or RS-232 connectivity.
♦ Easily Scans Barcodes on Screens
Scanning paper barcode with high speed;Easily scans barcodes directly from mobile device or computer screens, almost as if they were printed on paper.
♦ Durable
The WAI-7000-Z can withstand up to drop to concrete from distances as high as 1.2m (4 ft).

Product Details

Manufacturing, healthcare, retail point-of-sale and other workflow environments often involve mixed barcode applications. If your organization is the same, and you’d benefit from hands-free, presentation scanning, Winson has just the solution: the WAI-7000-Z area-imaging scanner.

Simply put, the WAI-7000-Z scanner is a high achiever. It’s the advanced area-imaging scanner engineered to decode all standard 1D, PDF and 2D codes.

Powered by COMS array sensor, the WAI-7000-Z is defining industry standards for imaging solutions. It even gives you aggressive reading of barcodes on highly reflective surfaces like mobile phone screens.

Find out more about what your organization can accomplish with the WAI-7000-Z area-imaging scanner and Winson workflow solutions.

► Winson barcode scanners are compatible with almost all common systems, as Windows, Android, Mac OS, IOS, Linux etc.
► Winson barcode scanners support multiple keyboard language: USA, Germany, French, Italy, Spanish, Turkey, Belgium, Brazil Czech and so on.
► Winson barcode scanners are play and pluy, no need to manual install driver.
► Winson barcode scanners apply to registry office of the airport/train station, hospitals, warehouses, supermarkets, retail stores, libraries, catering, logistics, express delivery, etc.
► Support multi-barcodes, such as: 1D： Codebar，Code128,Code39,Code39,Code93,Code11,EAN13，EAN8，GS1-Databar，GS1-128（EAN-128），Interleaved 2 of 5，Matrix 2 of 5，Industry 2 of 5，UPC-A，UPC-E，ISBN，ISSN 2D： PDF417, Data Matrix, QR Code，Micro PDF417，Micro QR Code，Aztec Code.

Click Here to Contact us »

Technical parameter

Specifications

PHYSICAL CHARACTERISTICS

Configurations
Decoding

ENVIRONMENTAL

Temp
0 - 50% (operation)
-5 - 55% (storage)
Humidity
5%~95%(No condensation)
Ambient light
Fluorescent light 4000lx max, direct sun light 80,000lx max ,white light 4000lx max
Shock drop test
1.2m drop onto concrete surface

ELECTRICAL

Interface
RS-232/USB HID KEYBOARD/USB VCP/
Voltage requirement
5VDC±10%
Current consumption
Max:200mA

OPTICAL CHARACTERISTICS

Photo sensor
CMOS array sensor
Sensor resolution
1280X800 pixels
Aim light source
Red LED

SCANNING PERFORMANCE

Min resolution
1D: 5mil(0.127mm)
2D: 10mil(0.25mm)
Min.PCS value
>25%UPC/EAN 13（13mil）
Field of View
39°(H),25°(V)

SUPPORTED BARCODE SYMBOLOGIES

1D: Codebar，Code128,Code39,Code39,Code93,Code11,EAN13，EAN8，GS1-Databar，GS1-128（EAN-128），Interleaved 2 of 5，Matrix 2 of 5，Industry 2 of 5，UPC-A，UPC-E，ISBN，ISSN

2D:PDF417, Data Matrix, QR Code，Micro PDF417，Micro QR Code，Aztec Code
