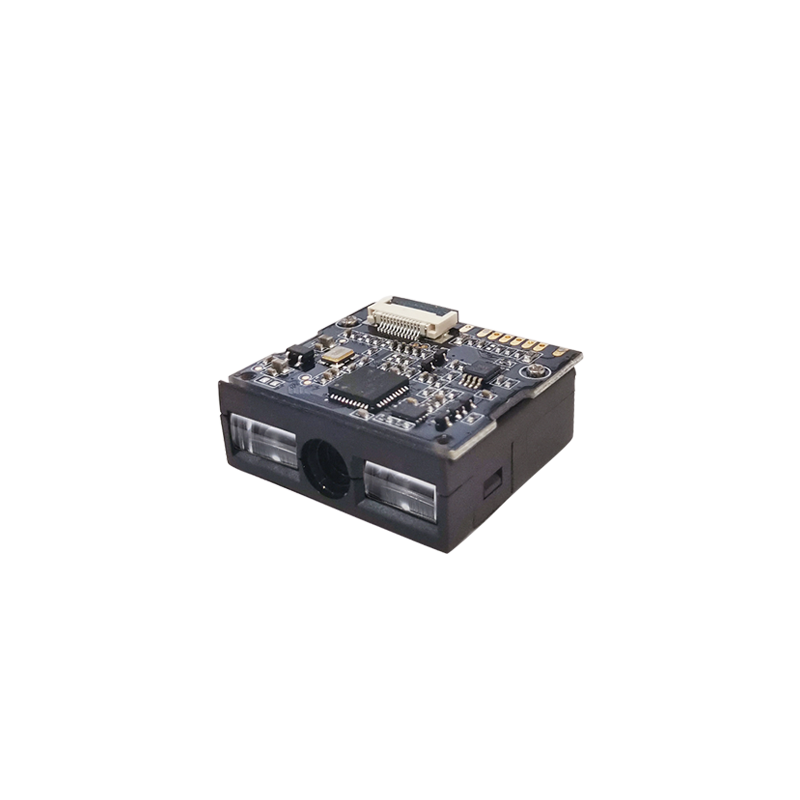

WDC2509 1D CCD OEM Scan Engine

Dimensions
27mm x 24mm x 12mm（1.06in x 0.94in x 0.47in）
Weight
6g (0.21 oz)
Configurations
Decode


ENVIRONMENTAL

Ambient Light
Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Operating Temperature
-0°to 65°C / 32°to 149°F
Storage Temperature
 -30°to 70°C /-22°to 158°F
Humidity
5 - 90% (operation) ) 5 - 90% (storage)
Shock Drop Test
1.2m drop onto concrete surface


ELECTRICAL

Interface
TTL-232/USB
Interface Connector
0.5-12P FPC
Voltage Requirement
DC 3.3/5V±10%
Current Consumption
Max:120mA


OPTICAL CHARACTERISTICS

Photo Sensor
CCD linear sensor
Sensor Resolution
2500pix
light Source
632nm red led


SCANNER PERFORMANCE

Scan Rate
350±50 (scans/second)
Scan Angle
Pitch angle:±30°
Skew angle:±70°
Tilt angle:±45°
Min X Dimension
0.127mm/5mil（PCS 0.9）
Print Contrast
〉20%UPC/EAN 13（13mil）
Curvature
R≥15 mm (EAN8)，R≥20 mm (EAN13) （resolution=0.26mm，PCS=0.9）


SUPPORTED BARCODE SYMBOLOGIES

EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST
