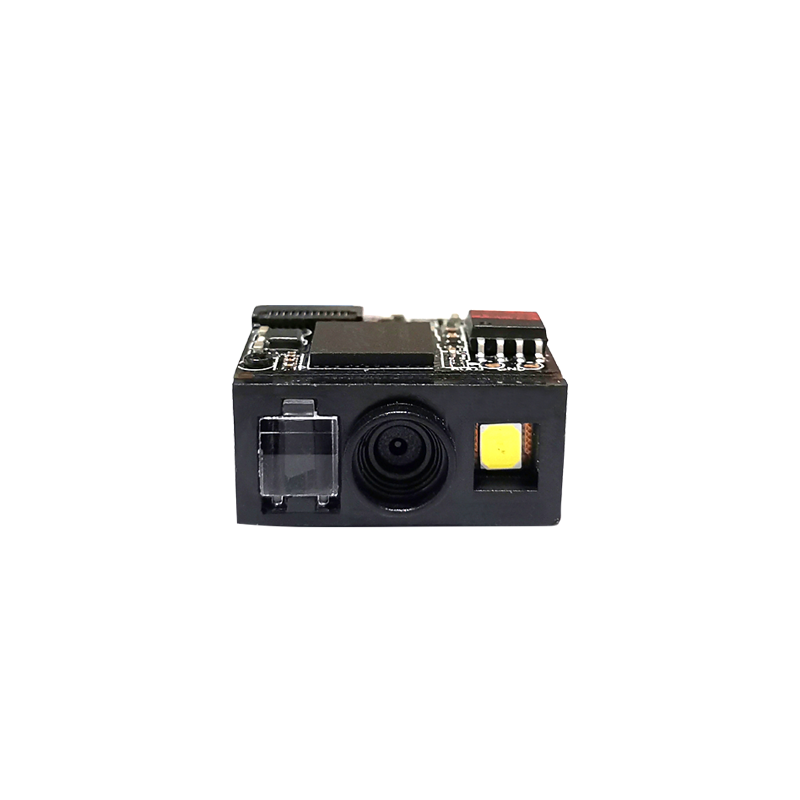

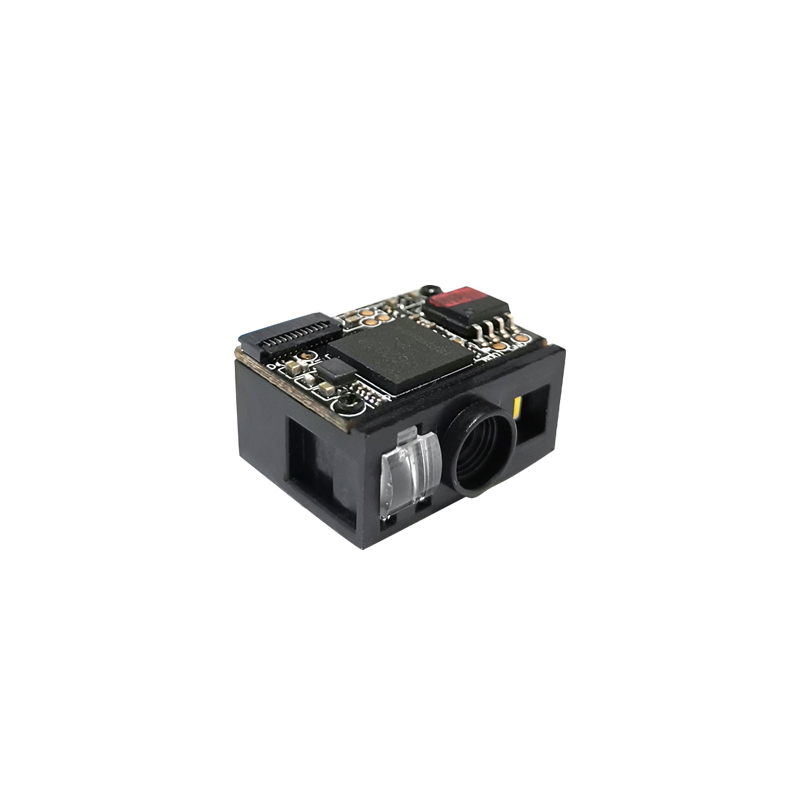

Name: WDI3038 1D & 2D OEM Scan Engine
Brand: Winsonchina
Availability: InStock
Rating: 5 (1 reviews)

Home > Barcode Scan Engine > CMOS

Description Specifications Review

Description

The high-performance WDI3038 2D imager combine an LED-based aimer with high motion tolerance to deliver great scanning responsiveness. Plus, its LED-based aimer is safe for customer- and patient-facing applications.

Highlights

♦ Class-Leading Motion Tolerance
Delivers great scanning responsiveness – a distinct performance advantage for your OEM designs.
♦ Safe, LED-Based Aimer
Highly visible and safe LED-based aimer is ideal for customer- or patient-facing applications in healthcare, retail point-of-sale, kiosks and access control applications.
♦ Very Compact, Extremely Durable
Despite its small size, WDI3038 scan engine is extremely durable. It’s perfect for integration into your rugged devices.
♦ Rugged
Designed to withstand extreme temperatures, vibrations and shock for extended use in tough environments.
♦ Easy to Integrate
Features a wide range of integration options, including USB, RS-232 TTL.

Product Details

Rapid scanning and a safe, LED-based aimer. Together they make the WDI3038 high-performance 2D imager well suited for quick-action applications that prohibit lasers – for example, customer- or patient-facing applications in healthcare, retail point-of-sale, kiosks and access control applications.

The WDI3038 imager is also an excellent choice for applications that require reading damaged, poorly printed, overlaid and colored barcodes.

Additional features and benefits include:

♦ Additional features and benefits include.
♦ A highly visible White LED that makes your OEM products easy to aim, even in low light or indoor environments.
♦ Omnidirectional reading capabilities to achieve high read rates irrespective of barcode angle.
♦ support for scanning in auto-trigger mode.
♦ Complies with stringent standards for shock and vibration, and can successfully operate within a wide temperature range, making integration easier.
To find out more about the WDI3038 High-Performance 2D Imager with LED aimer and Winson OEM solutions.

Click Here to Contact us »

Specifications

Specifications

PHYSICAL CHARACTERISTICS

Dimensions
21.2mm x 16.9mm x 11.2mm
Weight
5g
Configurations
Decode

ENVIRONMENTAL

Ambient Light
Fluorescent light 1600 Lux max, direct sun light 80,000 lx max
Operating Temperature
-20°to 60°C / -4°to 140°F
Storage Temperature
-40°to 80°C /-40°to 176°F
Humidity
5 - 95% (operation ) 5 - 95% (storage)
Shock drop test
1.2m drop onto concrete surface

ELECTRICAL

Interface
TTL-232/USB
Interface connector
0.5-12P FPC
Voltage requirement
DC 3.3V±5%
Current consumption
Max:190mA

OPTICAL CHARACTERISTICS

Photo sensor
CMOS array sensor
Sensor Resolution
648X488 pixels
Aim light source
Red Bar LED
light source
White LED*1

SCANNER PERFORMANCE

Scan Rate
30fps
Scan Angle
Pitch angle:±40°
Skew angle:±60°
Tilt angle:±180°
Language
multiple languages

SUPPORTED BARCODE SYMBOLOGIES

1D：UPC-A , UPC-E, UPC-E1, EAN-8, EAN-13,EAN-14, EAN-128, UCC128,
ISBN/ISSN,CODE11, CODE32, CODE39, CODE39 Full ASCII, CODE93,
CODE128，UK/Plessey, GS1
2D:QR code, PDF417,Data matrix
