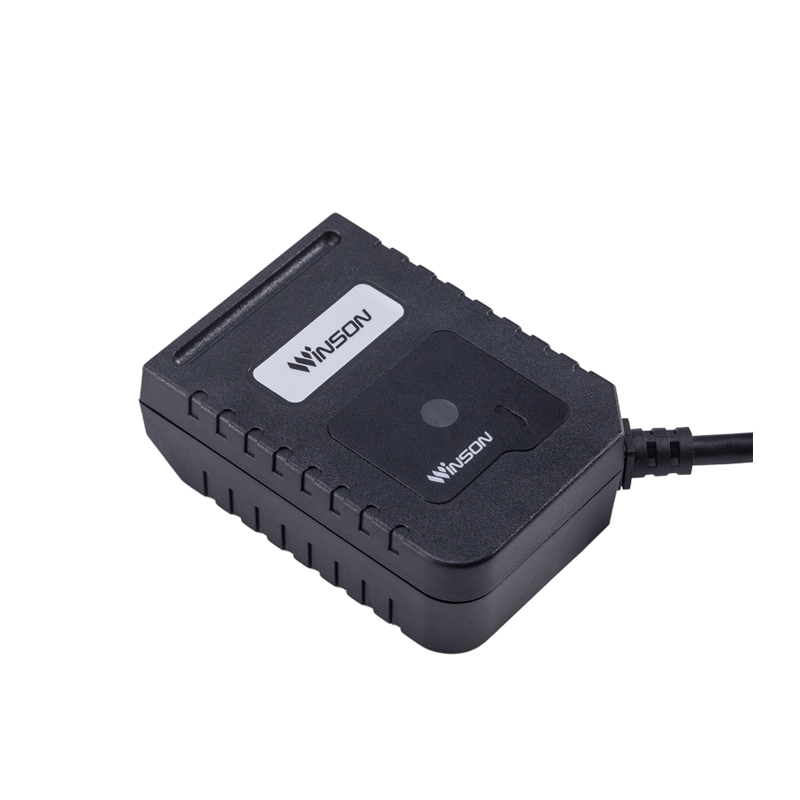

Specifications
Specifications
PHYSICAL CHARACTERISTICS
Dimensions
68 mm x 48 mm x 23.5mm(2.68in * 1.89in * 0.93in)
Weight
USB/USB VCP：118g(4.16oz)
RS-232:147g(5.19oz)
ENVIRONMENTAL
Ambient Light
fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Operating Temperature
-20°to 65°C / -4°to 149°F
Storage Temperature
-30°to 70°C /-22°to 158°F
Humidity
5 - 90% (operation) ) 5 - 90% (storage)
Shock Drop Test
1.2m drop onto concrete surface
ELECTRICAL
Interface
RS-232/USB HID KEYBOARD/USB VCP
Voltage Requirement
5VDC±10%
Current Consumption
Max:118mA
OPTICAL CHARACTERISTICS
Photo Sensor
CCD linear sensor
Sensor Resolution
2500pix
Light Source
632nm red led
SCANNING PERFORMANCE
Scan Rate
350±50 (scans/second)
Scan Angle
Pitch angle:±30°
Skew angle:±70°
Tilt angle:±40°
Min X Dimension
0.127mm/5mil（PCS 0.9）
Print Contrast
〉25%UPC/EAN 13（13mil）
Curvature
R≥15 mm (EAN8)，R≥20 mm (EAN13) （resolution=0.26mm，PCS=0.9）
SUPPORTED BARCODE SYMBOLOGIES
EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST
Manual
Manual
Winson's step-by-step instructions for creating a configuration file. A configuration file programs a scanner to meet a customer’s particular scanner requirements: enabling/disable bar code types, setting the communication protocol, setting beeper volume, etc.
