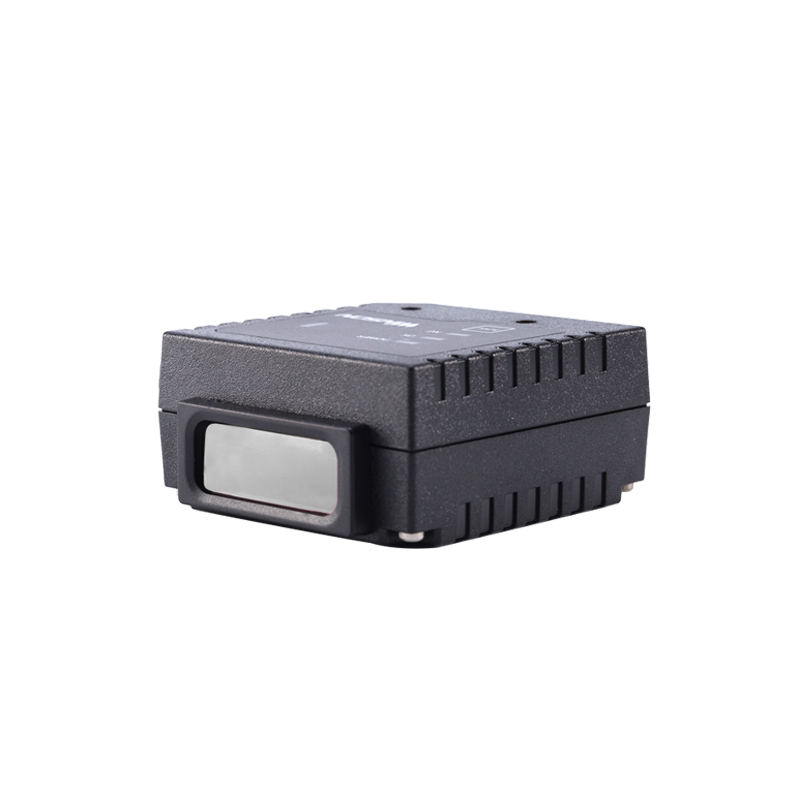

Specifications
Specifications
PHYSICAL CHARACTERISTICS
Dimensions
57 mm x 63 mm x 32mm(2.24in * 2.5in * 1.26in)
Case Material
PC Black
Weight
160g
ENVIRONMENTAL
Ambient Light
fluorescent light 10,000 lx max , direct sun light 100,000 lx max ,white light 10,000 lx max
Operating Temperature
-30 to 60 °C / -22 to 140 °F
Storage Temperature
-40 to 70 °C / -40 to 158 °F
Humidity
5%-90%
Shock Drop Test
1.2m drop onto concrete surface
ELECTRICAL
Interface
RS-232/USB HID KEYBOARD/USB VCP
Voltage Requirement
5VDC±10%
Current Consumption
Max:320mA
OPTICAL CHARACTERISTICS
Photo Sensor
CMOS array sensor
Sensor Resolution
640X480 pixels
Aim Light Source
Red bar LED
Light Source
White LED
SCANNING PERFORMANCE
Scan Rate
Up to 60fps
Scan Angle
Pitch angle: ±50°
Skew angle: ±50°
Tilt angle: ±180°
Min X Dimension
SR:4mil(0.101mm)
HD:2mil(0.051mm)
Print Contrast
〉25%UPC/EAN 13(13mil)）
Field of View
38°(H),29°(V)
SUPPORTED BARCODE SYMBOLOGIES
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, SCode, Telepen, TriOptic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
2D : Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite cod es, Data Matrix (ECC200), Passport MRZ (OCRB), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Manual
Manual
Winson's step-by-step instructions for creating a configuration file. A configuration file programs a scanner to meet a customer’s particular scanner requirements: enabling/disable bar code types, setting the communication protocol, setting beeper volume, etc.
