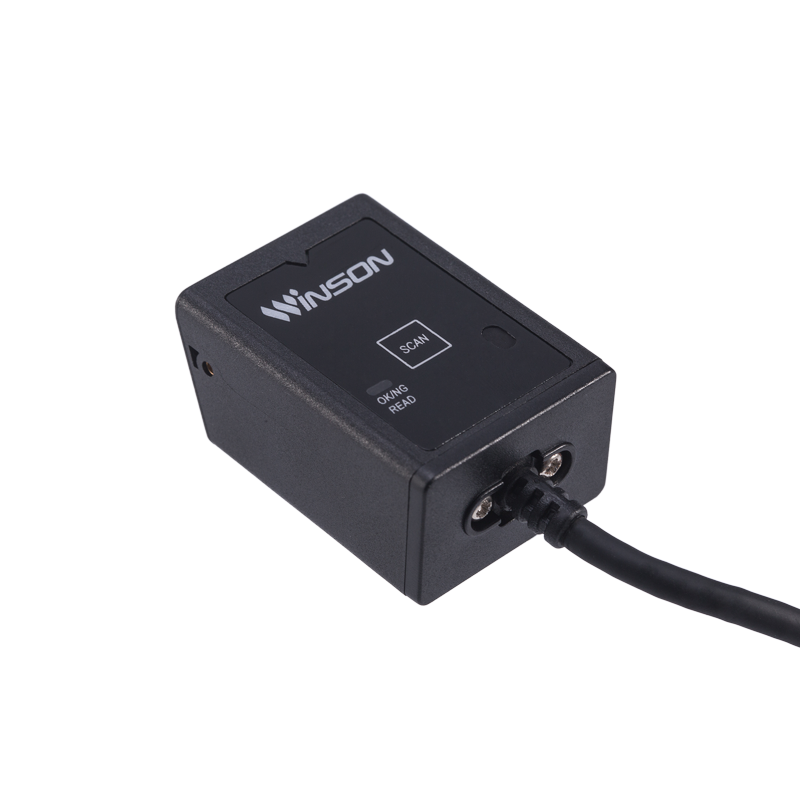

Specifications
Specifications
PHYSICAL CHARACTERISTICS
Dimensions (L*W*H)
44mm * 54mm * 25mm(1.73in * 2.13in * 0.98in)
Weight
RS-232:104g(4.40oz)
ENVIRONMENTAL
Temp
-20°to 65°C / -4°to 149°F(operation)
-30°to 70°C /-22°to 158°F(storage)
Humidity
5 - 90% (operation)
5 - 90% (storage)
Ambient light
Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Shock drop test
1.2m drop onto concrete surface
MBTF
30,000 hours except laser diode(10,000 hours) and except mirror scan unit(10,000 hours)
ELECTRICAL
Interface
USB HID KEYBOARD/USB VCP/RS-232/RS-485
Voltage requirement
DC 5V±10%
Current consumption
Max:120mA
OPTICAL CHARACTERISTICS
Light source
650nm visible laser diode
SCANNING PERFORMANCE
Scan rate
100 ± 20 scans/second
Min resolution
SR：0.101/4mil（PCS 0.9）
Decode angle
Pitch angle:±40°
Skew angle:±65°
Tilt angle:±35°
Min.PCS value
〉20%UPC/EAN 13（13mil）
Curvature
R≥15 mm(EAN8)，R≥20 mm(EAN13)(resolution=0.26mm，PCS=0.9)
SUPPORTED BARCODE SYMBOLOGIES
EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2 OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST
Manual
Manual
Winson's step-by-step instructions for creating a configuration file. A configuration file programs a scanner to meet a customer’s particular scanner requirements: enabling/disable bar code types, setting the communication protocol, setting beeper volume, etc.
