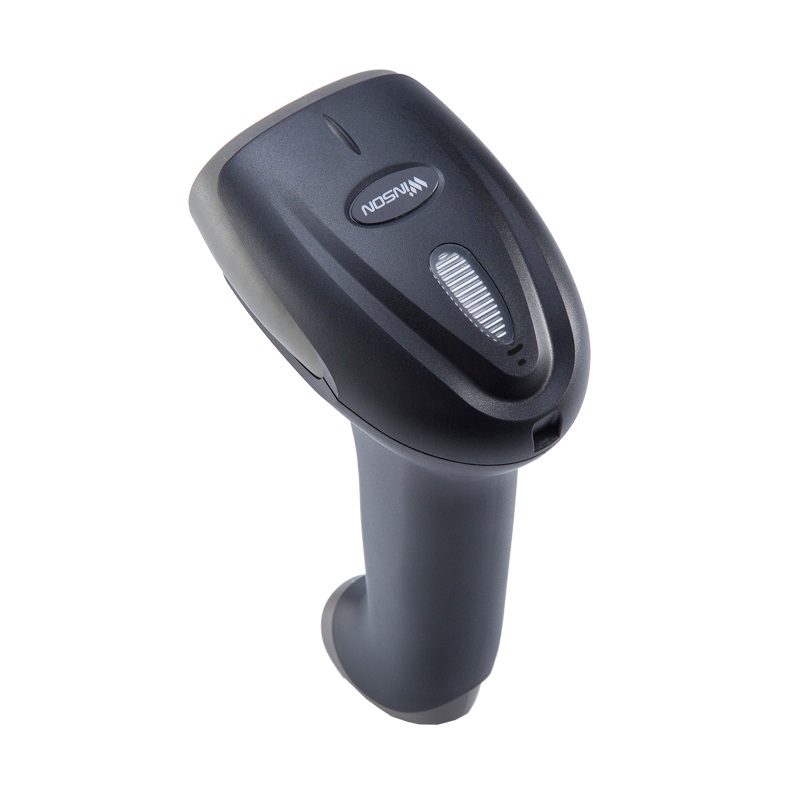

Winson WNI-6712/V Handheld Barcode Scanner CMOS 2D Wireless 2.4G Reader

Winson WNI-6712/V Handheld Barcode Scanner CMOS 2D Wireless 2.4G Reader

1.Capture all 1D code and 2D code;
2.Superior durability and reliability.
Description Specifications Review
Description


Winson WNI-6712/V Handheld Barcode Scanner CMOS 2D Wireless 2.4G Reader




Product Details

► Winson barcode scanners are compatible with almost all common systems, as Windows, Android, Mac OS, IOS, Linux etc.
► Winson barcode scanners support multiple keyboard language: USA, Germany, French, Italy, Spanish, Turkey, Belgium, Brazil Czech and so on.
► Support Custom Function: such as add a prefix/suffix, delete the last four characters, interlaced upload data...
► Support self-upgrade, as no limitation for Keyboard Cash.
► 32 Bite CPU, highly efficient, and greatly improves the working efficiency.
► Winson barcode scanners are play and pluy, no need to manual install driver.
► Can be adjusted the working mode of barcode scanner according to your own needs, as continuous reading or single reading, scan the same barcode or not, delay the time to upload data or not....
► Winson barcode scanners apply to registry office of the airport/train station, hospitals, warehouses, supermarkets, retail stores, libraries, catering, logistics, express delivery, etc.
► Support multi-barcodes, such as:1D: Codabar,Code128,Code11,Code32,Code39,Code93,Composite,EAN/UPC,EAN-8,EAN-13
2D: Aztec Code,Codablock F,DOT_CODE, HANXIN, Maxicode,MicroPDF417,Micro QR Code,MSI,PDF417,QR Code, DataMatrix.


 Click Here to Contact us »


Specifications
Specification

PHYSICAL CHARACTERISTICS

Dimension (LxWxH)
95mm×70mm×168mm
Weight
Scanner:185g, Receiver:16g


ELECTRICAL
Voltage Requirement
DC 5V±10%
Current Consumption
Max:120mA
Interface
USB HID KEYBOARD(Wireless receiver)


ENVIRONMENTAL
Operating Temperature
-20° to 65°C / -4° to 149°F
Storage Temperature
-30° to 70°C /-22° to 128°F
Humidity
5 to 95% (operation) ) 5 to 95% (storage)
Shock Drop Test
Designed to withstand 1.5m drops to concrete


SCAN PERFORMANCE
Sensor Resolution
Area Image (648 x 488 pixel array)
Decode Angle
Pitch angle:±60°
Skew angle:±60°
Tilt angle:±180°
Min Resolution
1D:0.101mm/4mil (PCS 0.9)
2D:0.178mm/7mil (PCS 0.9)
Min.PCS Value
>15%UPC/EAN 13(13mil)
Curvature
R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)
Field of View
46°(H),35°(V)


Decode Capabilities

1D:Codabar,Code128,Code11,Code32,Code39,Code93,Composite,EAN/UPC,EAN-8,EAN-13,GS1 DataBar Expanded,GS1 DataBar Limited,GS1 DataBar Omnidirectional,Hong Kong 2 of 5(China Post),Interleaved 2 of 5,Matrix 2 of 5,Pharmacode.RSS-14,RSS-LIMITED,RSS-EXPANDED,Industrial 2 of 5,Telepen,Trioptic Code, UPC-A,UPC-E
2D:Aztec Code,Codablock F,DOT_CODE, HANXIN, Maxicode,MicroPDF417,Micro QR Code,MSI,PDF417,QR Code, DataMatrix
