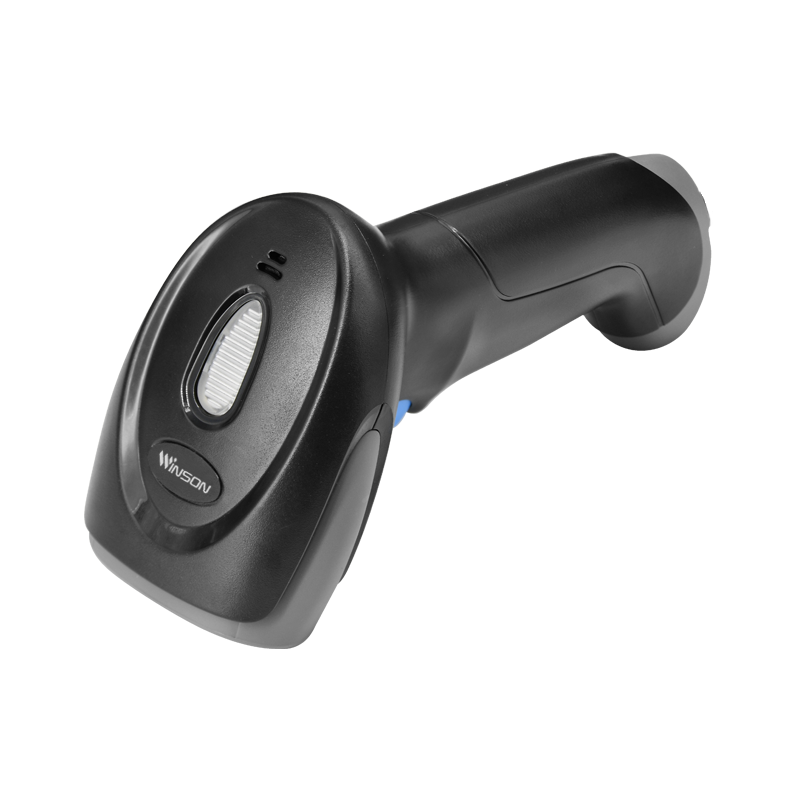

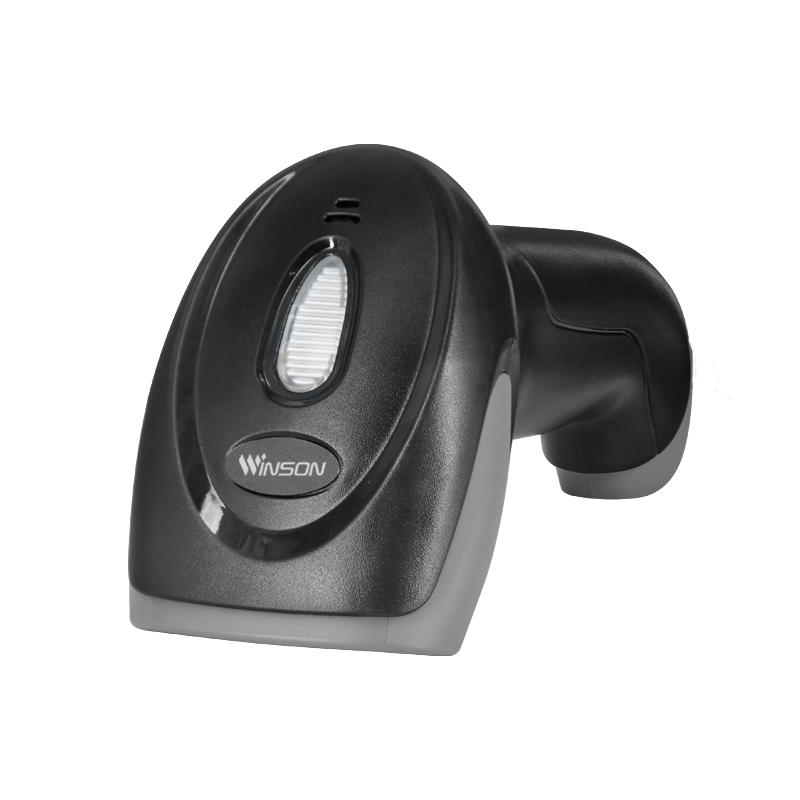

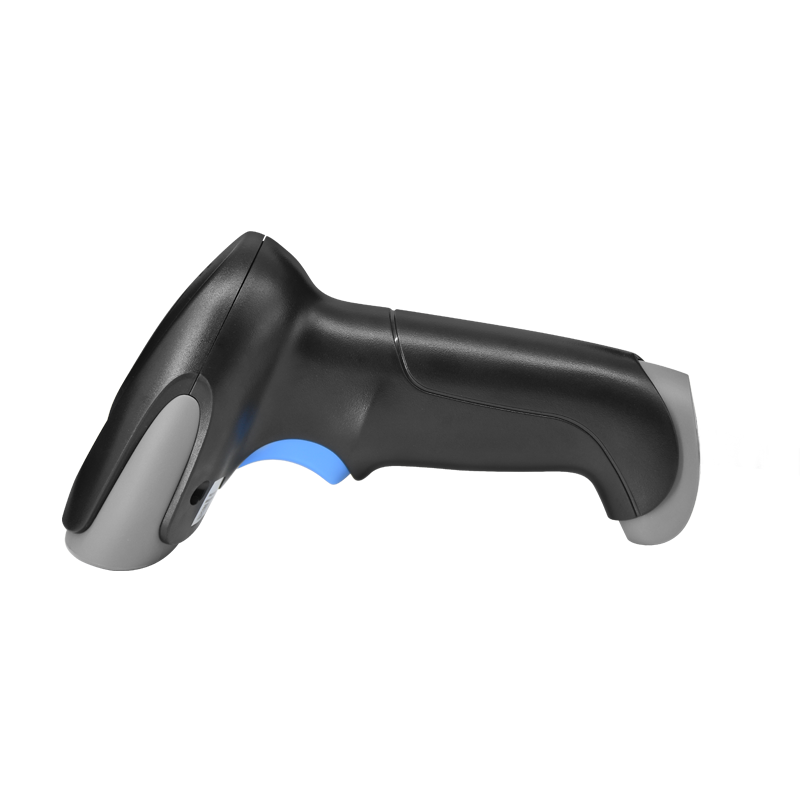

Winson WNI-6802/V Coms Image Reader Wireless 2D Stock Taking Barcode Scanner

Winson WNI-6802/V Coms Image Reader Wireless 2D Stock Taking Barcode Scanner


---

Product Details

► Winson barcode scanners are compatible with almost all common systems, as Windows, Android, Mac OS, IOS, Linux etc.
► Winson barcode scanners support multiple keyboard language: USA, Germany, French, Italy, Spanish, Turkey, Belgium, Brazil Czech and so on.
► Support Custom Function: such as add a prefix/suffix, delete the last four characters, interlaced upload data...
► Support self-upgrade, as no limitation for Keyboard Cash.
► 32 Bite CPU, highly efficient, and greatly improves the working efficiency.
► Winson barcode scanners are play and pluy, no need to manual install driver.
► Can be adjusted the working mode of barcode scanner according to your own needs, as continuous reading or single reading, scan the same barcode or not, delay the time to upload data or not....
► Winson barcode scanners apply to registry office of the airport/train station, hospitals, warehouses, supermarkets, retail stores, libraries, catering, logistics, express delivery, etc.
► Support multi-barcodes, such as:1D: Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,ITF-25(Interleaved 2 0f 5),Code39,Code93,Codabar
2D: QR Code,Data Matrix,PDF417



Click Here to Contact us »



Specification


Wireless Characteristics
Communication mode	Cache mode/Inventory mode
Communication mode	2.402 to 2.480GHz
Transmission range	30m(In empty area)
Battery capacity	2000mAh (Lithium battery)
Charge Time from Empty to Full Charge	5H
Duration of use	11H (wireless mode,real-time mode communication mode,60 scans/minute)

Electrical Characteristics
Interface Supported	USB HID KEYBOARD/USB VCP or RS-232
Input Voltage	DC 5V
Current	150mA
Performance Characteristics
Sensor	640×480 CMOS
Illumination	White LED
Focus	Red LED
Scanning Angle	Pitch angle:+55°
	Skew angle:+360°
	Tilt angle:+55°
Field of view	36°(H),27°(V)
Reading accuracy	≥5mil
Decode Capability	1D:Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,ITF-25(Interleaved 2 0f 5),Code39,Code93,Codabar 2D:QR Code,Data Matrix,PDF417
Environmental Characteristics
Temperature	operation:-20°C to 60°C
	storage:-40°C to 80°C
Humidity	operation:5%~95% (no condensation)
Ambient light	0~100,000LUX
Decoding Depth of Field
Symbology	Resolution	Barcode number	Barcode width
Code128	13mil	10	4.3x3.1cm
Code39	5mil	7	3.5x1.19cm
EAN13	13mil	13	4.5x2.69cm
QR Code	15mil	30	1.9x1.85cm
Data Marix	10mil	30	4.5x1.16cm
PDF 417	6.67mil	30	4.0x10.5cm
