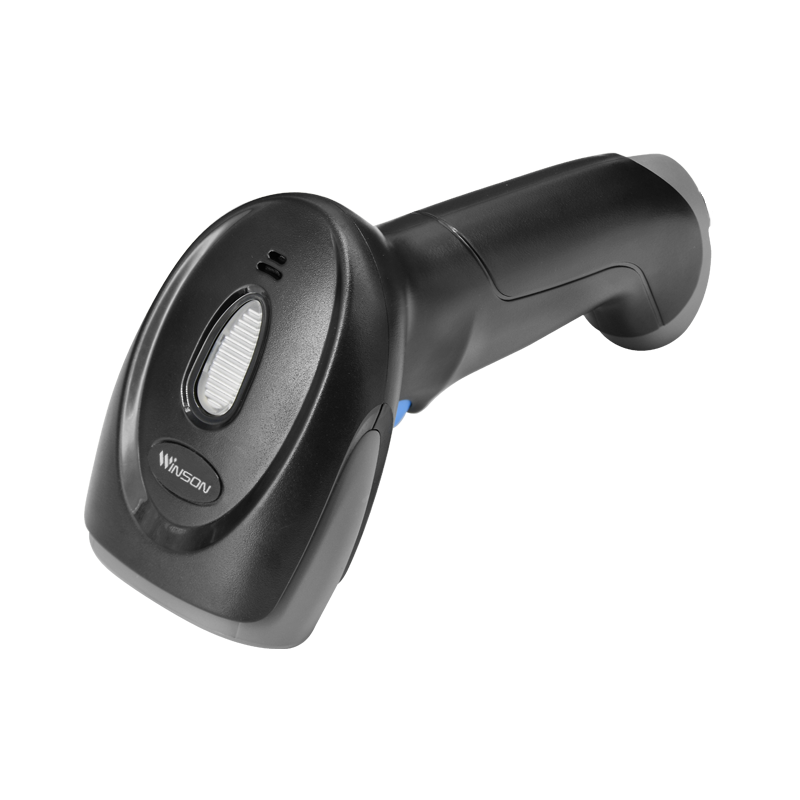

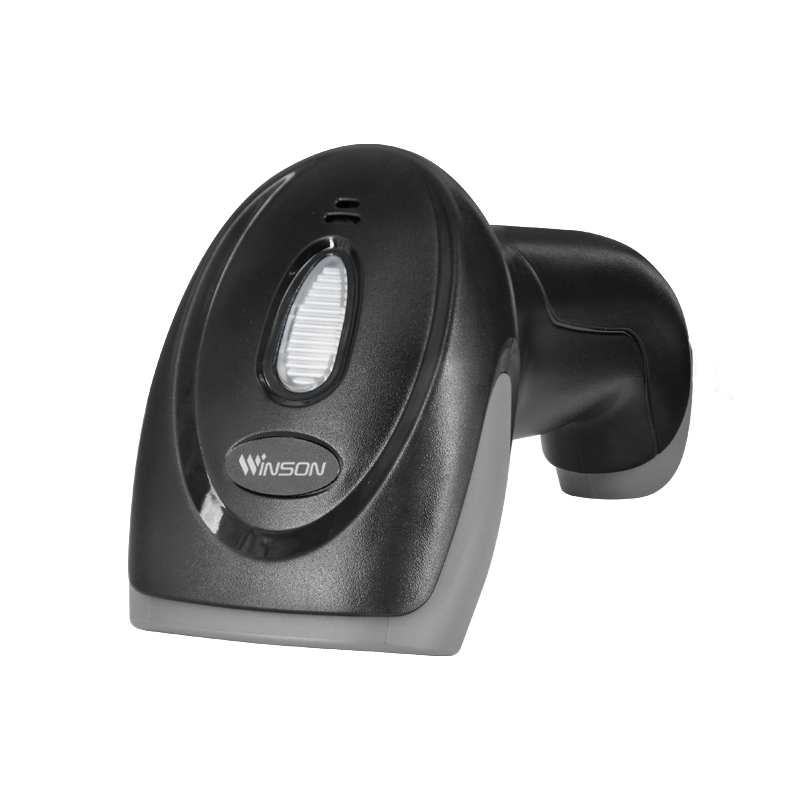

WINSON WNL-1054 10m Transmission Range 1D Wireless Barcode Scanner Portable Laser Scanner

Wireless Characteristics

Communication mode

Cache mode/Inventory mode

Communication mode

Buletooth 4.2

2.4G:2.402 to 2.480GHz

Transmission range

2.4G:30m(In empty area)

Buletooth: 10m(In empty area)

Battery capacity

2000mAh (Lithium battery)

Charge Time from Empty to Full Charge

6H

Electrical Characteristics

Interface Supported

USB HID KEYBOARD/USB VCP

Input Voltage

DC 5V±5%

Current

Max:185mA

Performance Characteristics

Light Source

650nm visible laser diode

Decoding speed

100±20/s

Scanning Angle

Pitch angle:-30° to 0°,0° to +30°

Skew angle:-60° to 0°,0° to +60°

Tilt angle:-30° to 0°,0° to +30°

Min Resolution

1D : 4mils

Min .PCS value

>30%UPC/EAN 13(13mil)

Decode Capability

1D:EAN13,EAN8,UPC A,UPC E,ISSN,  ISBN,  UPC-A  ,

UPC-E , CODE39 , CODE32, CODE128, UCC-EAN128, CODE93,  CODE11, CODABAR,  MSI, CROSS 25 CODE, CHINA POST 25 CODE,  MATRIX 25CODE,INDUSTRIAL 25 CODE, GS1 DataBar Omnidirectional, GS1 DataBar Limited

Environmental Characteristics

Temperature

operation:0°C-50°C

storage:-10°C-60°C

Humidity

operation:20%~85% (no condensation)

storage:20%~95%(no condensation)

Physical Characteristics

Dimensions

90mm x67mm x 168mm(L*W*H)

Weight

130g

Indicator

Beeper, LED

Decoding Depth of Field

Symbology

Resolution

Barcode number

Barcode width

Nearest

Farthest

Code128

5mil

20

4.3x1.5cm

5cm

10cm

Code128

15mil

7

4.3x1.5cm

2.5cm

26cm

Code39

6.67mil

16

4.4x1.5cm

3cm

19cm

Code39

20mil

4

4.3x1.5cm

3cm

32cm

EAN13

13.34mil

13

4.2x1.5cm

2cm

24cm
