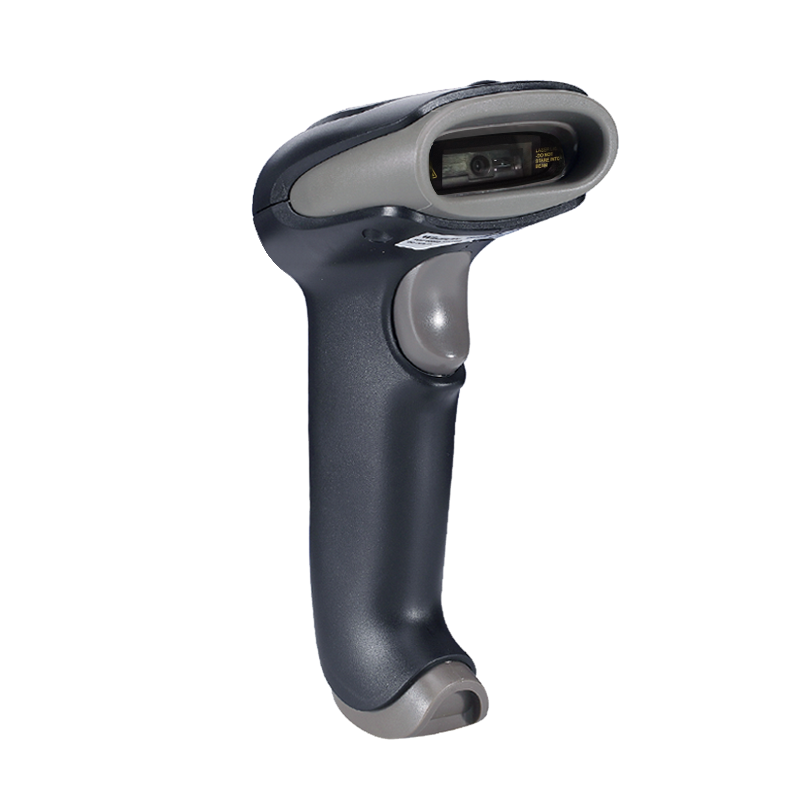

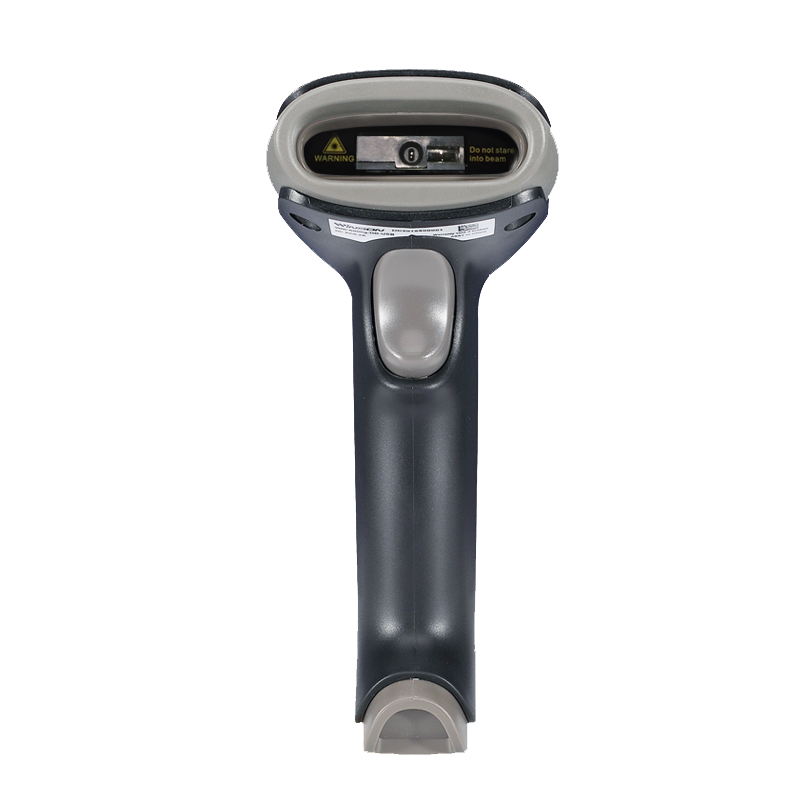

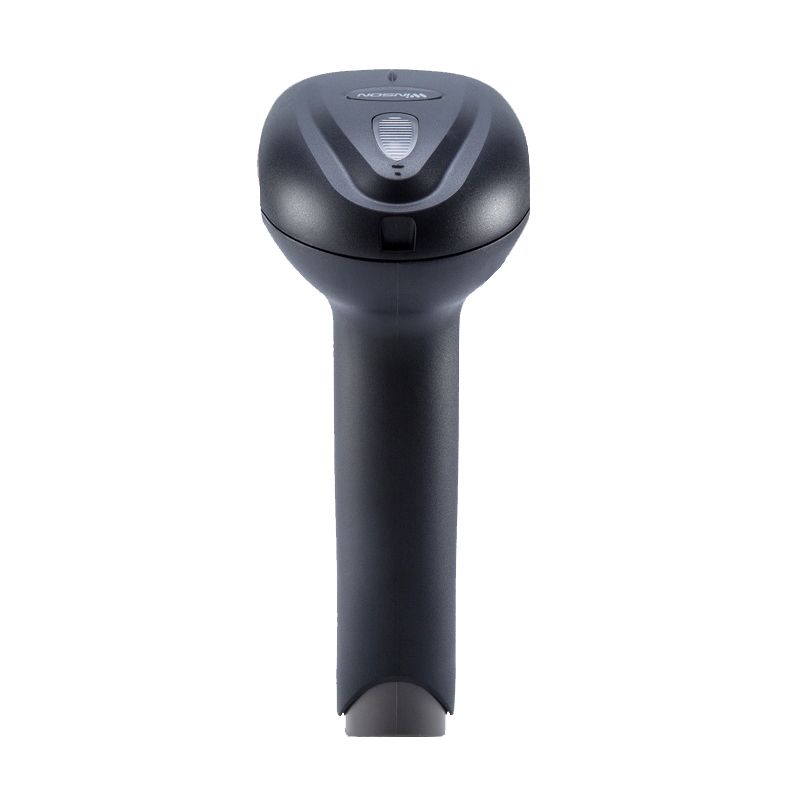

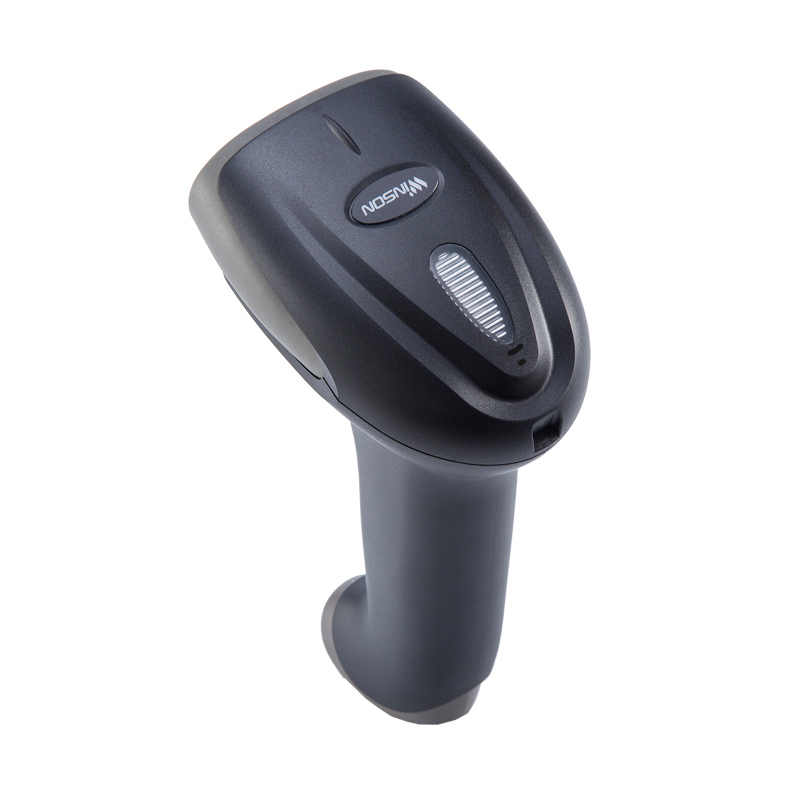

WNC-6060g 1D CCD Wire Handheld Barcode Scanner
WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner WNC-6060g 1D CCD Wire Handheld Barcode Scanner
  • WNC-6060g 1D CCD Wire Handheld Barcode Scanner
  • WNC-6060g 1D CCD Wire Handheld Barcode Scanner
  • WNC-6060g 1D CCD Wire Handheld Barcode Scanner
  • WNC-6060g 1D CCD Wire Handheld Barcode Scanner
  • WNC-6060g 1D CCD Wire Handheld Barcode Scanner

WNC-6060g 1D CCD Wire Handheld Barcode Scanner

◆1D CCD technology

◆Provide faster, more secure, more simple

◆Designed to withstand 1.5m (4.5ft) drops to concrete

◆Suitable for scanning mobile phone screen barcode and computer screen barcode
Login to Order Request Quote PDF Format
Description Specifications Review
Description


The WNC-6060g features the accuracy of optical CCD, with a compact, ergonomic and affordable design. The WNC-6060g features technical advancements that eliminate internal vibrating mirrors and moving parts for better shock absorption, longevity and durability.

Highlights

♦ Consistent, fast and accurate
With Winson’s patented decoding technology, WNC-6060g 1D barcode scanner can accurate read blurring, incomplete, dirty code, damaged code, high capacity bar code at a super fast speed in different environments.
♦ Reads Bar Codes on Various Media
Not only read codes on printed paper, it could also read codes on mobile phones and computer displays, with this scanner, you will be ready for the coming mobile barcodes revolution.
♦ Superior decoding performance
Winson WNC-6060g barcode scanner can reach 350+50 scans per second, fast and accurate, decoding error rate is 1/5,000,0000. Low decoding error rate can help to improve your working efficiency.
♦ Install conveniently, operate simply
PLUG-AND-PLAY: Just plug into a standard USB port and start your scan, 1.8m USB wired cable no drivers required, no need battery; works with Windows, Linux and Mac OS systems.
♦ Shockproof and Anti-broken
Winson WNC-6060g barcode scanner, after 1.5 drop onto concrete surface floor, still works well.
♦ Long life span
Winson barcode scanner has average 30,000 hours life span.
Winson barcode scanner uses world famous brand C&k trigger button, even after 1500，000 times trigger, it still works normally.Winson  WNC-6060g barcode scanner uses imported ABS material, high quality rubber is a good buffer against impact. Nice design makes it different and popular. It applies to cashier for mobile payment and  Logistics & Express .




Product Details

► Winson barcode scanners are compatible with almost all common systems, as Windows, Android, Mac OS, IOS, Linux etc.
► Winson barcode scanners support multiple keyboard language: USA, Germany, French, Italy, Spanish, Turkey, Belgium, Brazil Czech and so on.
► Support custom function: As add a prefix/suffix, delete the last 4 characters, interlaced upload data
► Support self-upgrade, as no limitation for Keyboard Cash.
► Can be adjusted the working mode of barcode scanneron the basis of your needs, as continuous reading or single reading, scan the same barcode or not, delay the time to upload data or not....
► Winson barcode scanners apply to registry office of the airport/train station, hospitals, warehouses, supermarkets, retail stores, libraries, catering, logistics, express delivery, and others.
► Support multi-barcodes, such as:  EAN13, EAN8, UPC A, UPC E, CODABAR（NW-7), CODE 39, CODE 93, INTERLEAVED  2OF5, STANDARD 2OF5，MATRIX 2OF5, CODE 128, EAN/UCC 128, CODE 11, CHINESE POST.

  Click Here to Contact us »


Specifications
Specifications

PHYSICAL CHARACTERISTICS
Dimension (LxWxH)
70mm x 95mm x 168mm
Weight
170g


ELECTRICAL
Interfaces
RS-232/USB HID KEYBOARD/USB VCP
Voltage Requirement
DC 5V±10%
Current Consumption
Max:200mA


ENVIRONMENTAL
Operating Temperature
-20° to 65°C / -4° to 149°F
Storage Temperature
-30° to 70°C /-22° to 158°F
Humidity
5 to 90% (operation) 5 to 90% (storage)
Shock Drop Test
Designed to withstand 1.5m (4.5ft) drops to concrete
Ambient Light
Fluorescent light maximum 4000 lx


OPTICAL CHARACTERISTICS
Photo Sensor
CCD linear sensor
Sensor Resolution
1500Pix
Light Source
632nm Red LED


SCAN PERFORMANCE
Scan Rate
350±50 (scans/second)
Decode Angle
Pitch angle:±30°
Skew angle:±75°
Tilt angle:±45°
Min Resolution
0.115mm/4mil（PCS 0.9）
Min.PCS Value
>25%UPC/EAN 13（13mil）
Curvature
R≥15 mm (EAN8)，R≥20 mm (EAN13) （resolution=0.26mm，PCS=0.9）
Error Rate
1/500W
Language
Multiple languages


DECODE CAPABILITIES
EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST
