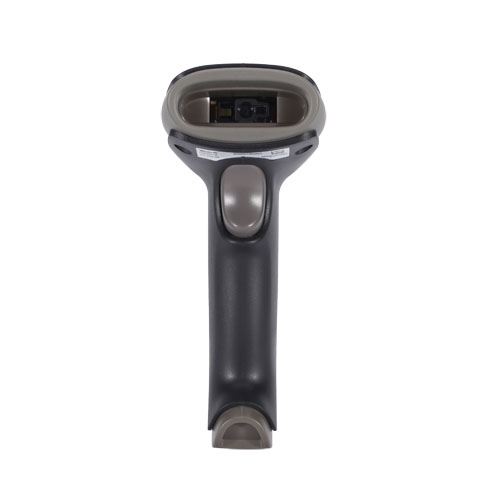

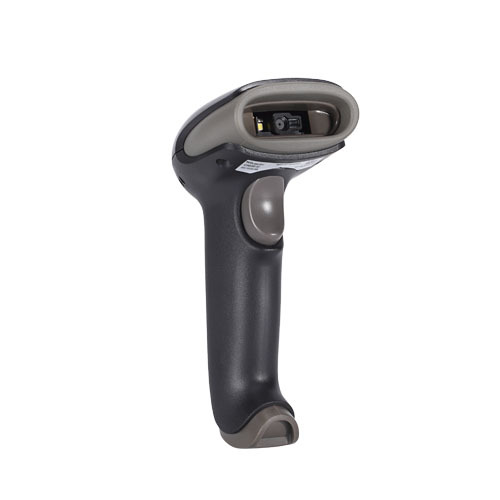

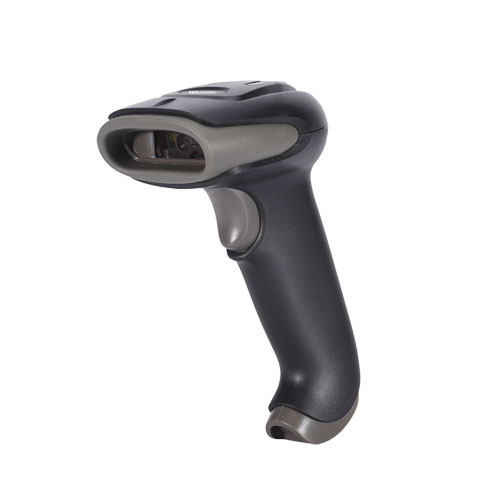

WNC-6084 1D CCD Wireless Handheld Barcode Scanner

WNC-6084 1D CCD Wireless Handheld Barcode Scanner

◆ To provide faster, more secure, more simple

◆ Provide more high speed

◆ Provide a more high-speed, more secure
Description Specification Video Review
Description


The WNC-6084 features the accuracy of optical CCD, with a compact, ergonomic and affordable design. The WNC-6084 features technical advancements that eliminate internal vibrating mirrors and moving parts for better shock absorption,longevity and durability. WINSON barcode scanners combine high performance, accuracy, and true value. This USB version offers a best-in-class solution for retail, point of sale, Office, Light Industrial, Warehouse, Libraries, Medical, Legal office, Government, marketing and any repetitive application where time and precision are critical factors in helping businesses streamline their workflow.


Highlights

♦ Consistent, fast and accurate
Wisnon WNC-6084 CCD barcode scanner can fast and accurately read dirty barcode, damaged barcode plicated barcode, applies to different applications.
Support barcodes on various materials
Winson CCD barcode scanner ( Linear Image scanner), not only can read the 1D barcodes on printed paper, but 1D barcodes on mobile phone and computer displays, silver paper with reflective material, and barcode surface with water and ice.

Using Bluetooth 4.0 wireless transmission technology
Winson  WNC-6084 bluetooth barcode scanner supports 10 meters wireless transmission, has big memory of 100,000pcs 13 bytes barcodes, real time and inventory different modes to meet the needs of different applications.
Superior decoding performance
Winson  WNC-6084 barcode scanner can reach 350+50 scans per second, fast and accurate can help to improve your working efficiency.
♦ Perfect process design and ultimate experience
Winson WNC-6084 uses imported ABS material, high quality rubber is a good buffer against impact. Nice design makes it different and popular. It applies to cashier for mobile payment and Logistics & Express.
♦ Long life span

Shockproof and Anti-broken
WNC-6084 barcode scanner, after 1.2 drop onto concrete surface floor, still works well.
Famous  brand C&k button
Winson barcode scanner uses world famous brand C&k trigger button, even after 1500,000 times trigger, it still works normally.




Product Details

► Winson barcode scanners are compatible with almost all common systems, as Windows, Android, Mac OS, IOS, Linux etc.
► Winson barcode scanners support multiple keyboard language: USA, Germany, French, Italy, Spanish, Turkey, Belgium, Brazil Czech and so on.
► Support Custom Function: such as add a prefix/suffix, delete the last four characters, interlaced upload data...
► Support self-upgrade, as no limitation for Keyboard Cash.
► 32 Bite CPU, the scanning speed is up to350+50 times per second, highly efficient, and greatly improves the working efficiency.
► Can be adjusted the working mode of barcode scanner according to your own needs, as continuous reading or single reading, scan the same barcode or not, delay the time to upload data or not....
► Winson barcode scanners apply to registry office of the airport/train station, hospitals, warehouses, supermarkets, retail stores, libraries, catering, logistics, express delivery, etc.

► Support multi-barcodes, such as: EAN13, EAN8, UPC A, UPC E, CODABAR(NW-7), CODE 39, CODE 93, INTERLEAVED  2OF5, STANDARD 2OF5,MATRIX 2OF5, CODE 128, EAN/UCC 128, CODE 11, CHINESE POST.

Specification
Specifications

PHYSICAL CHARACTERISTICS

Communications
Bluetooth
Communication frequency
2.402 to 2.480GHz Adaptive frequency hopping
Transmission range
≤15M(In empty area 15M )
Memory
500@13Byte barcode
Battery capacity
2000mAh (Lithium battery)
Dimensions
70 mm×95mm×168mm(L x W x H)
Weight
172.3g(6.08oz)
Charging time
4.5H
The working time of the full charge
4h(continuous reading situation)
7h(Manual reading situation)
More than 15 days(Stand-by time)
Operation mode
Read-time mode/ Inventory mode



ENVIRONMENTAL

Temp
-20° to 65°C / -4° to 149°F (operation)
-30° to 70°C /-22° to 158°F(storage)
Humidity
5 - 90% (operation) ) 5 - 90% (storage)
Ambient light
Fluorescent light 4,000 lx max , direct sun light 80,000 lx max ,white light 4,000 lx max
Shock drop test
1.8m drop onto concrete surface



ELECTRICAL

Interface
USB HID KEYBOARD
Voltage requirement
DC5V±10%
Current consumption
Max :120 mA



OPTICAL CHARACTERISTICS

Photo sensor
CCD linear sensor
Sensor resolution
2500Pix
Light source
632nm red LED



SCANNING PERFORMANCE

Scan rate
350±50 (scans/second)
Decode angle
Pitch angle:±35°
Skew angle:±75°
Tilt angle:±45°
Min resolution
0.101mm/4mil(PCS 0.9)
Min.PCS value
〉25%UPC/EAN 13(13mil)
Curvature
R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)
Language
Multiple languages
Error rate
1/500W



SUPPORTED BARCODE SYMBOLOGIES

EAN13, EAN8, UPC A, UPC E, CODABAR(NW-7),CODE 39, CODE 93, INTERLEAVED 2OF5, STANDARD 2OF5, MATRIX 2OF5, CODE 128, EAN/UCC 128, CODE 11, CHINESE POST
