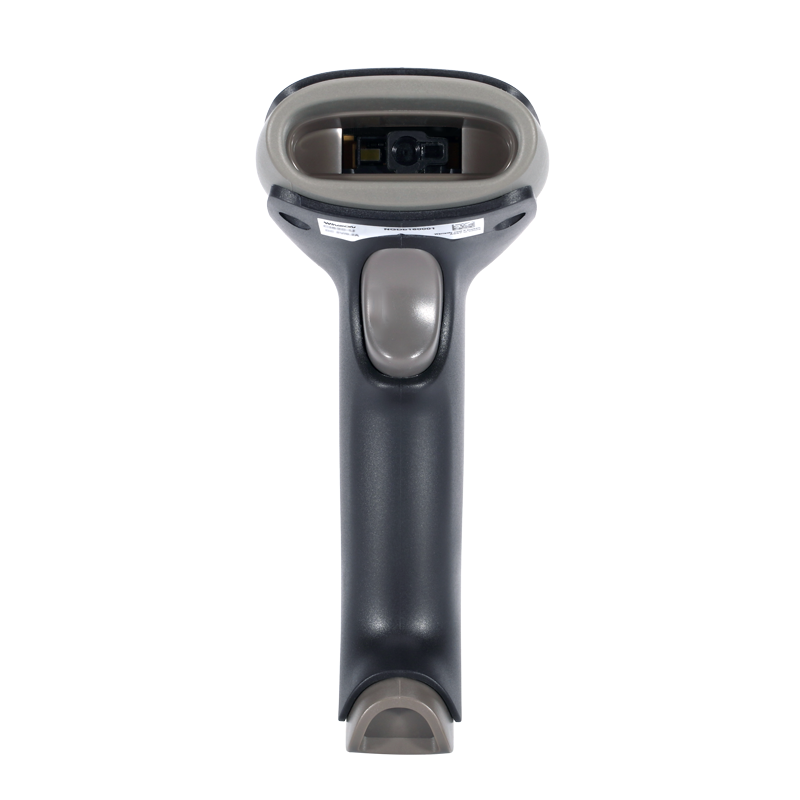

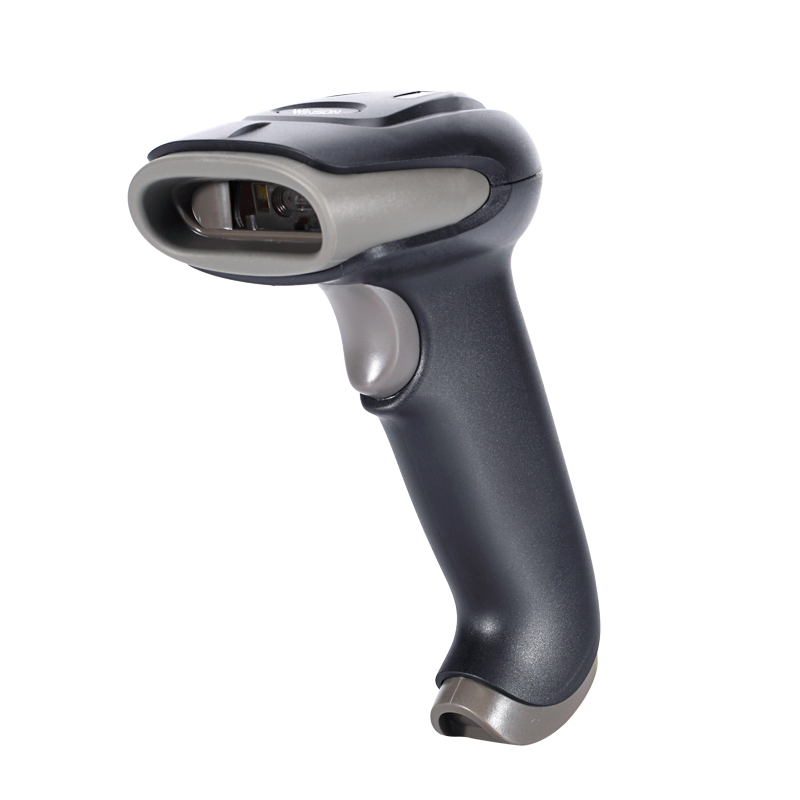

Specifications
Specifications
PHYSICAL CHARACTERISTICS
Dimension (L*W*H)
70mm*95mm*168mm(L*W*H)
Weight
133.5g
ENVIRONMENTAL
Temp
0° to 40°C / 32° to 104°F(operation)
-40° to 70°C /-40° to 158°F(storage)
Humidity
5 - 90% (operation) ) 5 - 90% (storage)
Shock drop test
1.5m drop onto concrete surface
Ambient light
Fluorescent light 4,000 lx max, direct sun light 80,000 lx max, white light 4,000 lx max
ELECTRICAL
Interface
RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement
5V±10%
Current consumption
Max:260mA
OPTICAL CHARACTERISTICS
Photo sensor
CMOS array sensor
Sensor resolution
752X480 pixels
Light source
White LED*1
Aim light source
Red Bar LED
SCANNING PERFORMANCE
Decode angle
Pitch angle:±60°
Skew angle:±65°
Tilt angle:±180°
Min resolution
1D:5mil(0.127mm)
2D:10mil(0.25mm)
Min.PCS value
〉25%UPC/EAN 13（13mil）
Language
multiple languages
Field of View
39°(H),25°(V)
SUPPORTED BARCODE SYMBOLOGIES
1D：UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2D：PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Manual
Manual
Winson's step-by-step instructions for creating a configuration file. A configuration file programs a scanner to meet a customer’s particular scanner requirements: enabling/disable bar code types, setting the communication protocol, setting beeper volume, etc.
