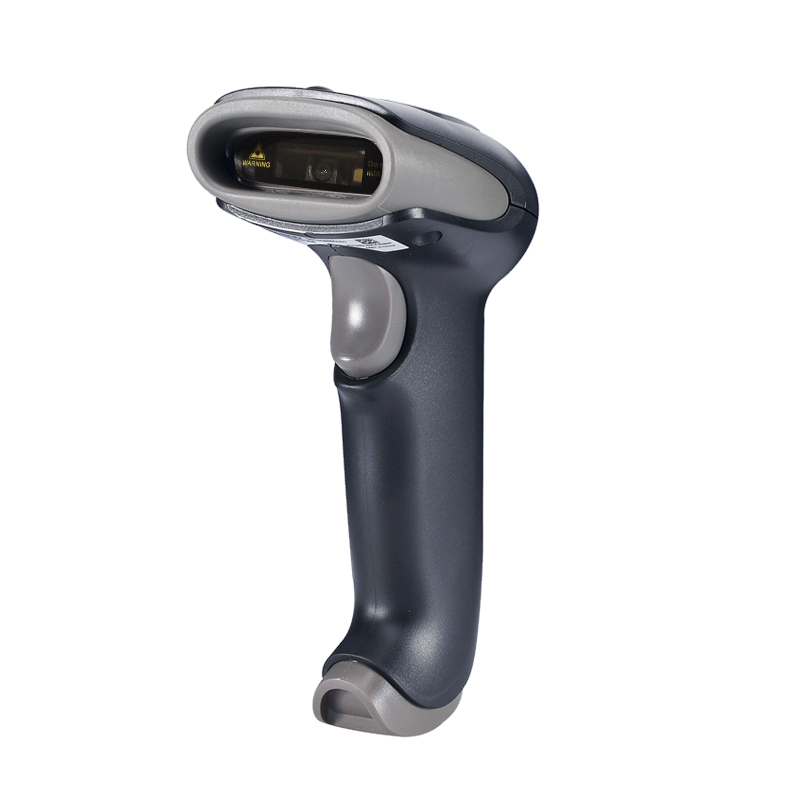

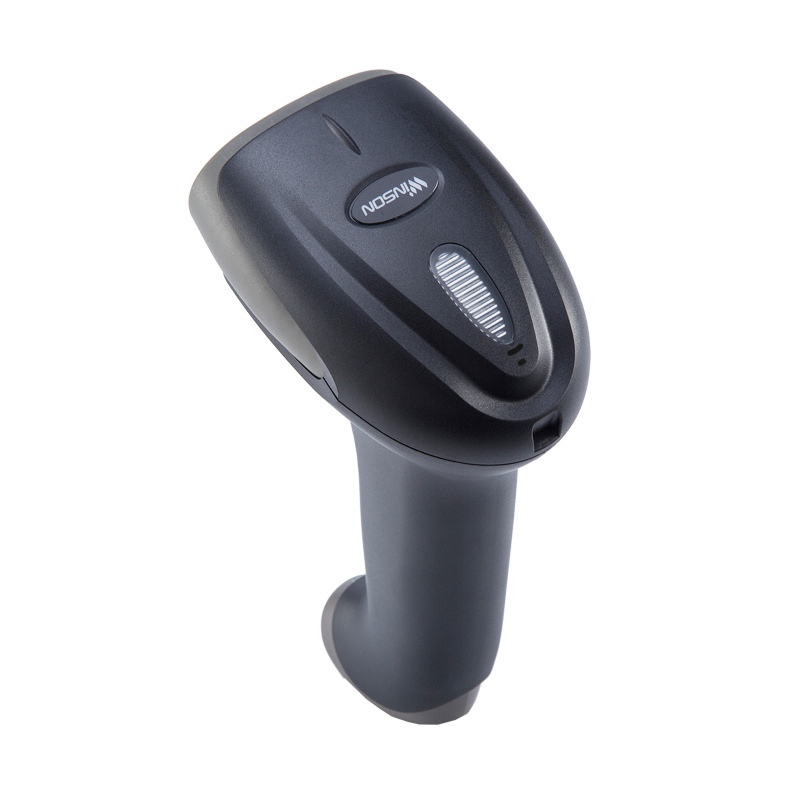

WNI-6214/V 2D Barcode Bluetooth Wireless Image Scanner

WNI-6214/V 2D Barcode Bluetooth Wireless Image Scanner


---



---

Product Details

► Winson barcode scanners are compatible with almost all common systems, as Windows, Android, Mac OS, IOS, Linux etc.
► Winson barcode scanners support multiple keyboard language: USA, Germany, French, Italy, Spanish, Turkey, Belgium, Brazil Czech and so on.
► Support Custom Function: such as add a prefix/suffix, delete the last four characters, interlaced upload data...
► Support self-upgrade, as no limitation for Keyboard Cash.
► 32 Bite CPU, highly efficient, and greatly improves the working efficiency.
► Winson barcode scanners are play and pluy, no need to manual install driver.
► Can be adjusted the working mode of barcode scanner according to your own needs, as continuous reading or single reading, scan the same barcode or not, delay the time to upload data or not....
► Winson barcode scanners apply to registry office of the airport/train station, hospitals, warehouses, supermarkets, retail stores, libraries, catering, logistics, express delivery, etc.
► Support multi-barcodes, such as:1D: UPC-A,UPC-E,EAN-8,EAN-13,Code 39,Code 128,Interleaved 2 of 5. Codabar
2D: PDF417,MicroPDF417,Data Matrix,QR Code.



Click Here to Contact us »



Specification

PHYSICAL CHARACTERISTICS

---

Dimension (LxWxH)
90mm*67mm*168mm
Weight
160g


ELECTRICAL

---

Voltage Requirement
DC 5V±10%
Current Consumption
Max:180mA
Battery Capacity
2000mAh (Lithium battery)
Charging Time
6hours
Communication mode
Wired transmission mode/ Wireless Read-time mode&Inventory mode
Communication frequency
Bluetooth 4.0 (2.402 to 2.480GHz Adaptive frequency hopping)


ENVIRONMENTAL

---

Operating Temperature
-20° to 65°C / -4° to 149°F
Storage Temperature
-30° to 70°C /-22° to 128°F
Humidity
5 to 95% (operation) ) 5 to 95% (storage)
Shock Drop Test
Designed to withstand 1.5m drops to concrete
Ambient Light
Fluorescent light maximum 4000 lx, direct sunlight maximum 80,000 lx, incandescent light maximum 4000 lx


SCAN PERFORMANCE

---

Sensor Resolution
Area Image (648 x 480 pixel array)
Decode Angle
Pitch angle:±65°
Skew angle:±60°
Tilt angle:±180°
Min Resolution
1D:0.101mm/4mil (PCS 0.9)
2D:0.178mm/7mil (PCS 0.9)
Min.PCS Value
>20%UPC/EAN 13（13mil）
Curvature
R≥15 mm (EAN8)，R≥20 mm (EAN13) （resolution=0.26mm，PCS=0.9）
Field of View
40°(H),29°(V)


Decode Capabilities

---

1D：UPC/EAN, Code 128, Code 39,Code 93, Interleaved 2 of 5,Codabar
2D：QR ,Mirco QR,PDF417 ,MircoPDF417,Data Matrix,Aztec
