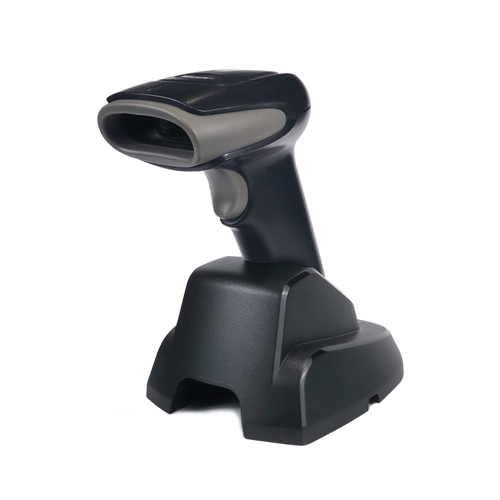

WNI-6223B-USB 2D Wireless Handheld Long Range Barcode Scanner,CMOS

WNI-6223B-USB 2D Wireless Handheld Long Range Barcode Scanner

◆ Long range barcode scanner

◆ Quick scan various barcodes

◆ Support reading barcodes from screen

◆ Suitable for Logistics and warehouses
Description Specification Review
Description


With Winson's patented CMOS decoding technology, WNI-6023B/V 2D barcode scanner with 20% contrast ratio helps to read 1D and 2D paper code, screen code, color code, damaged code, fold code and reflective code. The comprehensive technical innovation helps to enhance reading experiences which should be relaxing, natural and fast.




Highlights
High efficient barcode scanners able to scan barcodes of long distance are simply the gospel for warehouse, logistics, e-commerce picking centers and automatic production lines, as a replacement of manual data input.
♦ Long rang barcode scanner
High efficient barcode scanners able to scan barcodes of long distance are simply the gospel for warehouse, logistics, e-commerce picking centers and automatic production lines, as a replacement of manual data input.
♦ Support read small high-density barcode
It quickly reads paper and screen codes of different sizes, densities and digits.(1000-digit passenger code, 2000-digit paper code can be read)
♦ Big decode angle
Long-distance wide-angle professional lens and high-precision imaging technology, combined with the latest decoding algorithm let us complete barcode scanning without deliberately positioning barcodes to scanner.
♦ Network Mode Available
One to one, More to one. Multiple scanners can transmit data to the one wireless receiver - ideal in a warehouse where several people are scanning at once.
♦ Sit there and start to charge
Connect the cable to the receiver (also called charging base) and start. At this moment, the scanner sits at the receiver and charging begins.
High resolution:1280x800 pixels fast and accurate . Low decoding error rate can help to improve your working efficiency.

♦ One scan to get paired, easy to handle
The receiver and scanner get paired by one to one ID.  The data transmission is undisturbed and stable without cable drop. (Simply scan the barcode under the receiver to get paired)
♦ Plug and play
Support RS232, USB interface, virtual port, plug and play without settings.





Product Details

► Winson barcode scanners are compatible with almost all common systems, as Windows, Android, Mac OS, IOS, Linux etc.
► Winson barcode scanners support multiple keyboard language: USA, Germany, French, Italy, Spanish, Turkey, Belgium, Brazil Czech and so on.
► Support Custom Function: such as add a prefix/suffix, delete the last four characters, interlaced upload data...
► Support self-upgrade, as no limitation for Keyboard Cash.
► 32 Bite CPU, highly efficient, and greatly improves the working efficiency.
► Winson barcode scanners are play and pluy, no need to manual install driver .
► Can be adjusted the working mode of barcode scanner according to your own needs, as continuous reading or single reading, scan the same barcode or not, delay the time to upload data or not....
► Winson barcode scanners apply to registry office of the airport/train station, hospitals, warehouses, supermarkets, retail stores, libraries, catering, logistics, express delivery, etc.
► Support multi-barcodes, such as:  1D::UPC-A/UPC-E;EAN-8/EAN-13;Code128;Code39;Code93;Code32; Code11;Codabar;Plessey;MSI;Interleaved 2 of 5;IATA 2 of 5;Matrix 2 of 5; Straight 2 of 5;Pharmacode;RSS-14;RSS-14 Expanded;RSS-14 Limited; Composite Code-A;Composite Code-B;Composite Code-C
2D::PDF417;Micro PDF417;Data Matrix;QRcode;Micro QR;Aztec; MaxiCode




  Click Here to Contact us »





Specification

Specifications
Wireless Specifications


Communications
RF433
Communication frequency
433-440MHz
Transmission range
≤50M(In empty area 50M )
Memory
100,000@13Byte barcode
Battery capacity
2000mAh (Lithium battery)
Charging time
6H
The working time of the full charge
6h(continuous reading situation)
12h(Manual reading situation)
More than 15 days(Stand-by time)
Operation mode
Read-time mode/ Inventory mode/Cache mode


PHYSICAL CHARACTERISTICS


Dimensions
Scanner:90mm×67 mm×168 mm(L*W*H)

Base:145mm*112mm*74mm(L*W*H)
Receiver
Scanner:185g
Receiver:186g


ENVIRONMENTAL


Ambient Light
80,000 lx max
Temp
-20°- 65°C (operation)  , -30°- 70°C (storage)
Humidity
5 - 90%(operation),5 - 90% (storage)
Shock Drop Test
1.5m drop onto concrete surface



ELECTRICAL


Interface
RS-232/USB HID KEYBOARD/USB VCP
Voltage Requirement

DC5V±10%
Current Consumption
Max:250mA



OPTICAL CHARACTERISTICS


Photo Sensor
CMOS array sensor
Sensor Resolution
752X480 pixels
Light Source
White LED*1
Aim light source
Red Bar LED



SCANNING PERFORMANCE


Decode Angle
Pitch angle: ±70°
Skew angle: ±70°
Tilt angle: ±180°
Print Contrast
>25%UPC/EAN 13(13mil)
Min.Resolution
1D:0.101mm/4mil(pcs0.9)
2D:0.178mm/7mil(pcs0.9)
Language
Multiple languages
Field of View
53° (H) x 33° (V)



SUPPORTED BARCODE SYMBOLOGIES


1D:UPC-A/UPC-E;EAN-8/EAN-13;Code128;Code39;Code93;Code32;Code11;Codabar;Plessey;MSI;Interleaved 2 of 5;IATA 2 of 5;Matrix 2 of 5;Straight 2 of 5;Pharmacode;RSS-14;RSS-14 Expanded;RSS-14 Limited;Composite Code-A;Composite Code-B;Composite Code-C;
2D:PDF417;Micro PDF417;Data Matrix;QRcode;Micro QR;Aztec;MaxiCode
